Class SfCircularChart

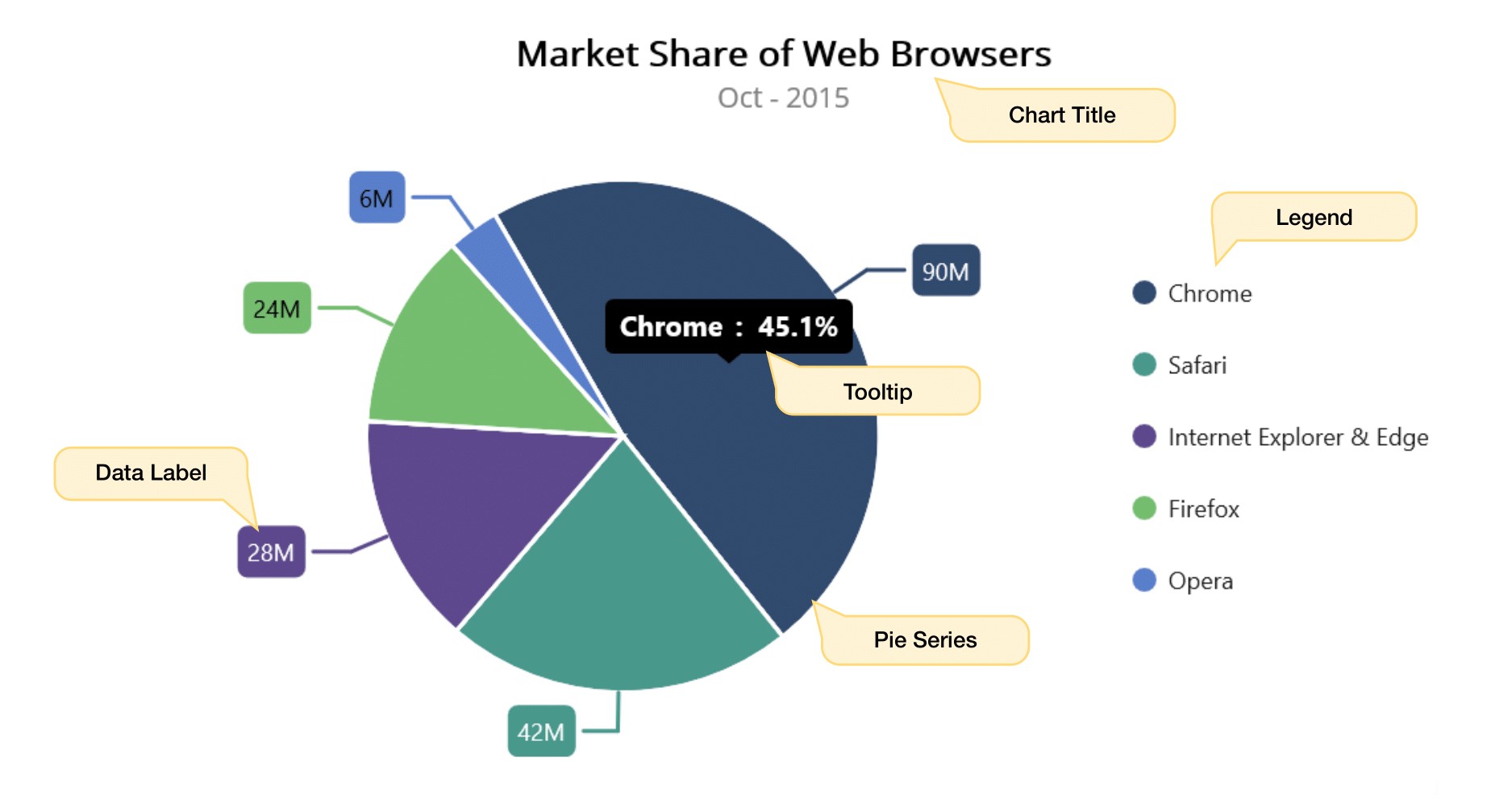

Renders two different types of circular charts, including doughnut and pie. Each chart has a different presentation of the data and is made to be more user-friendly.

Inheritance

System.Object

ChartBase

SfCircularChart

Implements

System.IDisposable

System.ComponentModel.INotifyPropertyChanged

Inherited Members

ChartBase.Dispose()

ChartBase.Header

ChartBase.HeaderProperty

ChartBase.HorizontalHeaderAlignment

ChartBase.HorizontalHeaderAlignmentProperty

ChartBase.InteractiveBehavior

ChartBase.InteractiveBehaviorProperty

ChartBase.Legend

ChartBase.LegendProperty

ChartBase.MeasureOverride(Size)

ChartBase.OnDoubleTapped(DoubleTappedRoutedEventArgs)

ChartBase.OnGotFocus(RoutedEventArgs)

ChartBase.OnHolding(HoldingRoutedEventArgs)

ChartBase.OnKeyDown(KeyRoutedEventArgs)

ChartBase.OnKeyUp(KeyRoutedEventArgs)

ChartBase.OnLostFocus(RoutedEventArgs)

ChartBase.OnManipulationCompleted(ManipulationCompletedRoutedEventArgs)

ChartBase.OnManipulationDelta(ManipulationDeltaRoutedEventArgs)

ChartBase.OnManipulationInertiaStarting(ManipulationInertiaStartingRoutedEventArgs)

ChartBase.OnManipulationStarted(ManipulationStartedRoutedEventArgs)

ChartBase.OnManipulationStarting(ManipulationStartingRoutedEventArgs)

ChartBase.OnPointerCanceled(PointerRoutedEventArgs)

ChartBase.OnPointerCaptureLost(PointerRoutedEventArgs)

ChartBase.OnPointerEntered(PointerRoutedEventArgs)

ChartBase.OnPointerExited(PointerRoutedEventArgs)

ChartBase.OnPointerMoved(PointerRoutedEventArgs)

ChartBase.OnPointerPressed(PointerRoutedEventArgs)

ChartBase.OnPointerReleased(PointerRoutedEventArgs)

ChartBase.OnPointerWheelChanged(PointerRoutedEventArgs)

ChartBase.OnRightTapped(RightTappedRoutedEventArgs)

ChartBase.OnTapped(TappedRoutedEventArgs)

ChartBase.PropertyChanged

ChartBase.ResumeSeriesNotification()

ChartBase.SeriesBoundsChanged

ChartBase.SeriesClipRect

ChartBase.SuspendSeriesNotification()

ChartBase.TooltipBehavior

ChartBase.TooltipBehaviorProperty

ChartBase.VerticalHeaderAlignment

ChartBase.VerticalHeaderAlignmentProperty

ChartBase.VisibleSeriesProperty

Namespace: Syncfusion.UI.Xaml.Charts

Assembly: Syncfusion.Chart.WinUI.dll

Syntax

public class SfCircularChart : ChartBase, IDisposable, INotifyPropertyChanged

Remarks

Circular chart control is used to visualize the data graphically and to display the data with proportions and percentage of different categories.

SfCircularChart class properties provides an option to add the series collection, allows to customize the chart elements such as legend, data label, selection, and tooltip features.

Series

ChartSeries is the visual representation of data. SfCircularChart offers PieSeries and DoughnutSeries.

To render a series, create an instance of required series class, and add it to the Series collection.


<chart:SfCircularChart>

       <chart:SfCircularChart.DataContext>
           <local:ViewModel/>
       </chart:SfCircularChart.DataContext>

       <chart:PieSeries ItemsSource = "{Binding Data}" XBindingPath="XValue" YBindingPath="YValue"/>

</chart:SfCircularChart>

SfCircularChart chart = new SfCircularChart();

ViewModel viewModel = new ViewModel();
chart.DataContext = viewModel;

PieSeries series = new PieSeries()
{
    ItemsSource = viewModel.Data,
    XBindingPath = "XValue",
    YBindingPath = "YValue"
};
chart.Series.Add(series);

public ObservableCollection<Model> Data { get; set; }

public ViewModel()
{
   Data = new ObservableCollection<Model>();
   Data.Add(new Model() { XValue = "A", YValue = 100 });
   Data.Add(new Model() { XValue = "B", YValue = 150 });
   Data.Add(new Model() { XValue = "C", YValue = 110 });
   Data.Add(new Model() { XValue = "D", YValue = 230 });
}

Legend

The Legend contains list of data points in chart series. The information provided in each legend item helps to identify the corresponding data point in chart series. The Series XBindingPath property value will be displayed in the associated legend item.

To render a legend, create an instance of ChartLegend, and assign it to the Legend property.

MainPage.xaml
MainPage.xaml.cs


<chart:SfCircularChart>

       <chart:SfCircularChart.DataContext>
           <local:ViewModel/>
       </chart:SfCircularChart.DataContext>

       <chart:SfCircularChart.Legend>
           <chart:ChartLegend/>
       </chart:SfCircularChart.Legend>

       <chart:PieSeries ItemsSource = "{Binding Data}" XBindingPath="XValue" YBindingPath="YValue"/>

</chart:SfCircularChart>

SfCircularChart chart = new SfCircularChart();

ViewModel viewModel = new ViewModel();
chart.DataContext = viewModel;

chart.Legend = new ChartLegend();

PieSeries series = new PieSeries()
{
    ItemsSource = viewModel.Data,
    XBindingPath = "XValue",
    YBindingPath = "YValue"
};
chart.Series.Add(series);

Tooltip

Tooltip displays information while tapping or mouse hover on the segment. To display the tooltip on the chart, you need to set the EnableTooltip property as true in .

To customize the appearance of the tooltip elements like Background, TextColor and Font, create an instance of ChartTooltipBehavior class, modify the values, and assign it to the chart’s TooltipBehavior property.

MainPage.xaml
MainPage.xaml.cs

<chart:SfCircularChart>

        <chart:SfCircularChart.DataContext>
            <local:ViewModel/>
        </chart:SfCircularChart.DataContext>

        <chart:SfCircularChart.TooltipBehavior>
            <chart:ChartTooltipBehavior/>
        </chart:SfCircularChart.TooltipBehavior>

        <chart:PieSeries EnableTooltip = "True"
                         ItemsSource="{Binding Data}"
                         XBindingPath="XValue"
                         YBindingPath="YValue"/>

</chart:SfCircularChart>

SfCircularChart chart = new SfCircularChart();

ViewModel viewModel = new ViewModel();
chart.DataContext = viewModel;

chart.TooltipBehavior = new ChartTooltipBehavior();

PieSeries series = new PieSeries()
{
   ItemsSource = viewModel.Data,
   XBindingPath = "XValue",
   YBindingPath = "YValue",
   EnableTooltip = true
};
chart.Series.Add(series);

Data Label

Data labels are used to display values related to a chart segment. To render the data labels, you need to enable the property as true in ChartSeries class.

To customize the chart data labels alignment, placement and label styles, need to create an instance of CircularDataLabelSettings and set to the DataLabelSettings property.

MainPage.xaml
MainPage.xaml.cs

<chart:SfCircularChart>

       <chart:SfCircularChart.DataContext>
           <local:ViewModel/>
       </chart:SfCircularChart.DataContext>

       <chart:DoughnutSeries ShowDataLabels = "True"
                             ItemsSource="{Binding Data}"
                             XBindingPath="XValue"
                             YBindingPath="YValue">
            <chart:DoughnutSeries.DataLabelSettings>
                <chart:CircularDataLabelSettings />
            </chart:DoughnutSeries.DataLabelSettings>
       </chart:DoughnutSeries>

</chart:SfCircularChart>

SfCircularChart chart = new SfCircularChart();

ViewModel viewModel = new ViewModel();
chart.DataContext = viewModel;
CircularDataLabelSettings dataLabelSettings = new CircularDataLabelSettings();
DoughnutSeries series = new DoughnutSeries()
{
    ItemsSource = viewModel.Data,
    XBindingPath = "XValue",
    YBindingPath = "YValue",
    ShowDataLabels = true,
    DataLabelSettings = dataLabelSettings,
};
chart.Series.Add(series);

Selection

SfCircularChart allows you to select or highlight a segment in the chart by using DataPointSelectionBehavior.

To enable the segment selection in the chart, create an instance of DataPointSelectionBehavior and set it to the property of series.

MainPage.xaml
MainPage.xaml.cs

<chart:SfCircularChart>

        <chart:SfCircularChart.DataContext>
            <local:ViewModel/>
        </chart:SfCircularChart.DataContext>

        <chart:PieSeries EnableTooltip = "True"
                         ItemsSource="{Binding Data}"
                         XBindingPath="XValue"
                         YBindingPath="YValue">
            <chart:PieSeries.SelectionBehavior>
                <chart:DataPointSelectionBehavior SelectionBrush = "Green" />
            </chart:PieSeries.SelectionBehavior>
        </chart:PieSeries>

</chart:SfCircularChart>

SfCircularChart chart = new SfCircularChart();

DataPointSelectionBehavior selectionBehavior = new DataPointSelectionBehavior()
{
    SelectionBrush=new SolidColorBrush(Colors.Green)
};

ViewModel viewModel = new ViewModel();
chart.DataContext = viewModel;

PieSeries series = new PieSeries()
{
   ItemsSource = viewModel.Data,
   XBindingPath = "XValue",
   YBindingPath = "YValue",
   EnableTooltip = true,
   Selection = selectionBehavior
};
chart.Series.Add(series);

Constructors

SfCircularChart()

Initializes a new instance of the SfCircularChart class.

Declaration

public SfCircularChart()

Fields

SeriesProperty

Identifies the Series dependency property.

Declaration

public static readonly DependencyProperty SeriesProperty

Field Value

Type	Description
Microsoft.UI.Xaml.DependencyProperty	The identifier for `Series` dependency property.

Properties

Series

Gets or sets a collection of chart series to be added to the circular chart.

Declaration

public CircularSeriesCollection Series { get; set; }

Property Value

Type	Description
CircularSeriesCollection	This property takes CircularSeriesCollection instance as value.

Remarks

To render a series, create an instance of required series class, and add it to the Series collection.

Examples

    <chart:SfCircularChart>

          <chart:SfCircularChart.DataContext>
              <local:ViewModel/>
          </chart:SfCircularChart.DataContext>

          <chart:DoughnutSeries ItemsSource="{Binding Data}"
                                XBindingPath="XValue"
                                YBindingPath="YValue"/>

    </chart:SfCircularChart>

    SfCircularChart chart = new SfCircularChart();

    ViewModel viewModel = new ViewModel();
    chart.DataContext = viewModel;

    DoughnutSeries series = new DoughnutSeries();
    series.ItemsSource = viewModel.Data;
    series.XBindingPath = "XValue";
    series.YBindingPath = "YValue";
    chart.Series.Add(series);

public ObservableCollection<Model> Data { get; set; }

public ViewModel()
{
   Data = new ObservableCollection<Model>();
   Data.Add(new Model() { XValue = "A", YValue = 100 });
   Data.Add(new Model() { XValue = "B", YValue = 150 });
   Data.Add(new Model() { XValue = "C", YValue = 110 });
   Data.Add(new Model() { XValue = "D", YValue = 230 });
}

Methods

OnApplyTemplate()

Declaration

protected override void OnApplyTemplate()

Overrides

ChartBase.OnApplyTemplate()

Implements

System.IDisposable

System.ComponentModel.INotifyPropertyChanged
